AMD/ATI Radeon E6760/6460 PCIE eyefinity 6dp output

Unit price：
MOQ：
BIOS：
Driver：
datasheet：
procedure dwg：
Hits：	10430

More photo

Brief description

HD9040DcustomizedV9000 chipset original：216-0810025 216-0810112 216-0810119

Detail

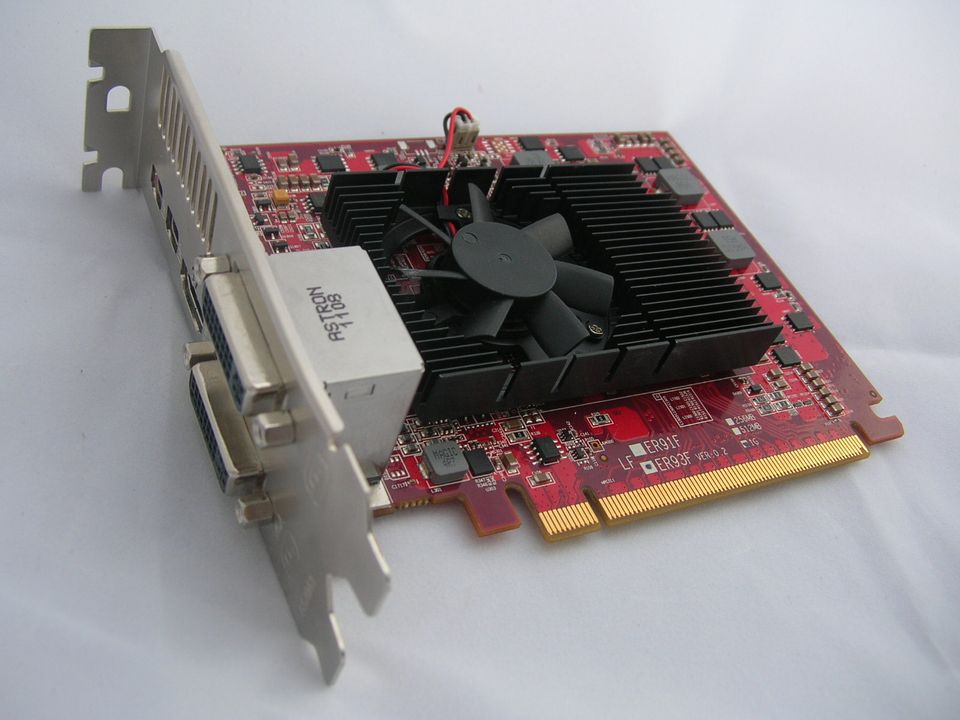

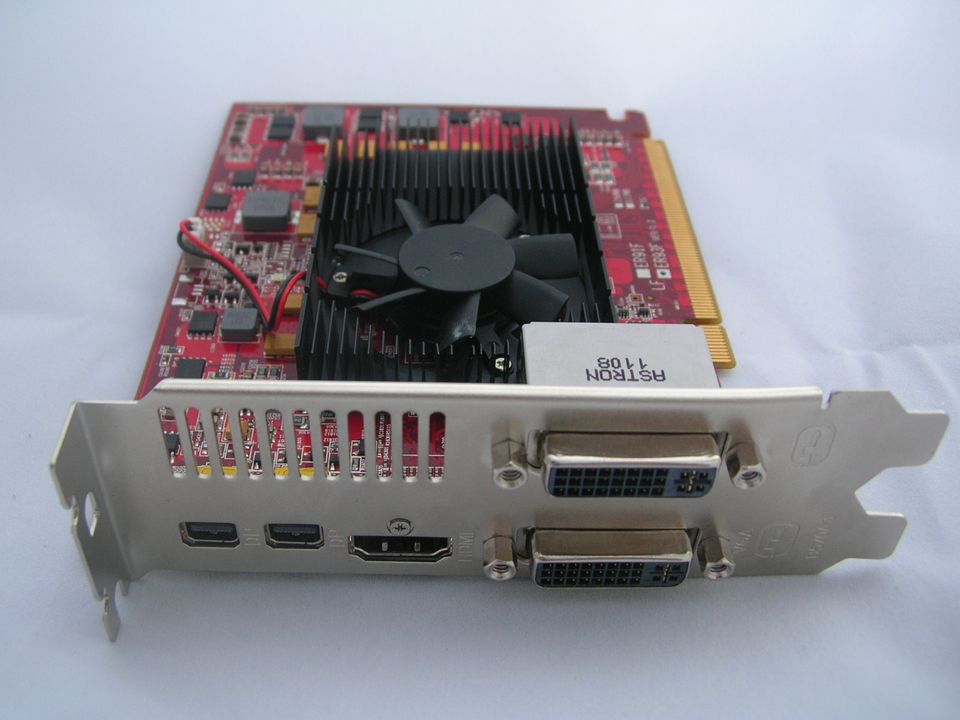

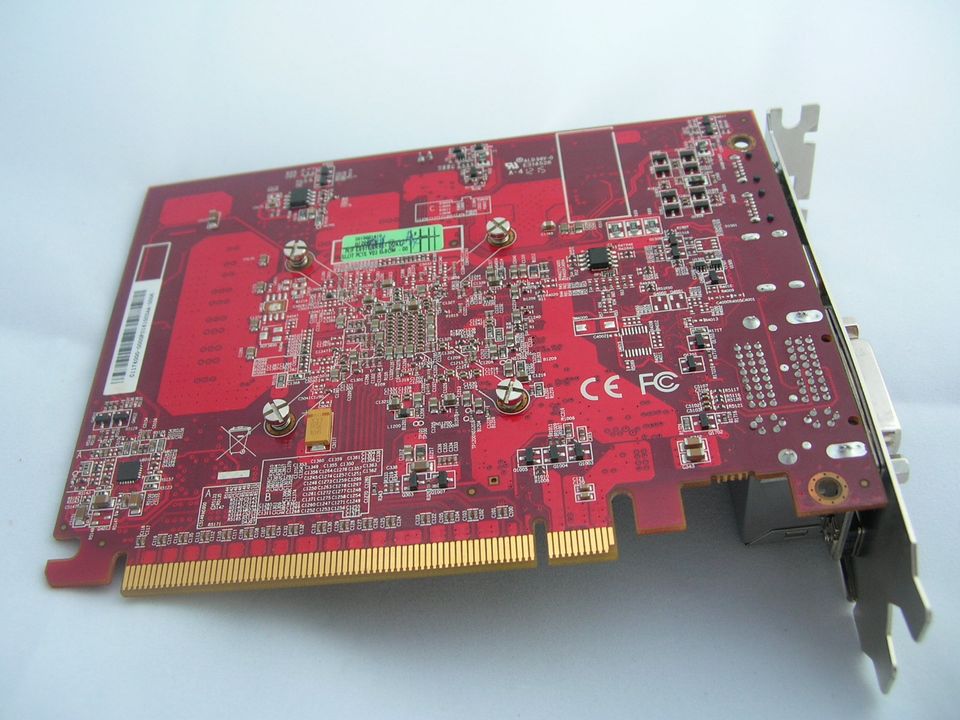

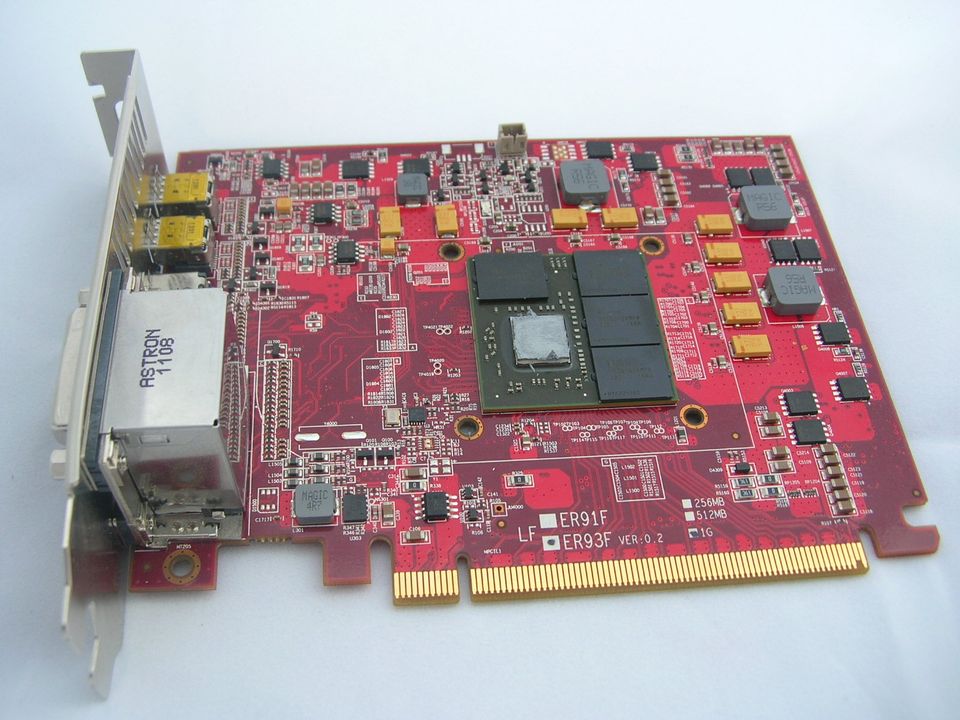

AMD RADEON E6760 PCI EXPRESS^™BOARD

AMD Radeon™ E6760 PCI Express™ Board Overview
Board dimensions (single slot, L x H mm, nominal)	Dual DVI + mini DisplayPort	Heatpipe 177 x 111 mm	Fansink 177 x 111 mm
	6x mini DisplayPort	Heatpipe 166 x 109 mm	Fansink 166 x 89 mm
	6x DVI	Heatpipe 173 x 111 mm	Fansink 173 x 111 mm
Thermal Design Power7 (TDP)		Dual DVI + mini DisplayPort: 41W 6x mini DisplayPort: 41W 6x DVI: 43W
E6760 Graphics Processing Unit
Process Technology		40 nm
Graphics Engine / Memory Clock		600 MHz Engine/800 MHz Memory
Memory		128-bit, 1 GB GDDR5, 51.2 GB/s
Host Interface		PCI Express® Version 2.1 (x1, x2, x4, x8, x16)
Graphics		480 shaders 3DMark™ VantageP score of P5870 DirectX® 11, Shader Model 5.0, OpenGL 4.1
Video		3rd Generation Video Decoder H.264, VC-1, MPEG-2, MPEG-4 part 2 decode Blu-ray 3D & stereo 3D graphics with AMD HD3D technology
Compute		576 GFLOPs/s single precision floating point (peak) AMD APP technology, OpenCLTM 1.1, DirectCompute 11
Display		Up to 6 displays with AMD Eyefinity multi-display technology
Audio		Integrated HD audio controller (Azalia) & Codec
Display Interfaces8 (max resolution)
Analog VGA		1x Triple 10-bit RGB DAC, 400 MHz, (2048 x 1536)
Single / Dual-Link DVI Resolution (w HDCP)		2x single-link DVI, (1600 x 1200) / 1x dual-link DVI, (2560 x 1600), 162 MPixels/s per link
DisplayPort		2x DisplayPort 1.1a, (2560 x 1600), 4x DisplayPort 1.2, (3840 x 2400)
Board Model Display Options
Dual DVI + DisplayPort		1x single-link DVI-D + 1x dual-link DVI-I + 1x mini DisplayPort 1.2a
6x DisplayPort		2x mini DisplayPort 1.1 + 4x mini DisplayPort 1.2a
6x DVI		6x single-link DVI-D (with 6x mini DisplayPort -> DVI dongles)
Software Support
Windows® XP / Windows® XP Embedded9		yes
Windows® Vista / Windows® 7		yes
Linux® (x86)		yes

AMD 宽域技术eyefinity三屏显示效果

ATI Eyefinity宽域技术的多屏配置显示效果

4台液晶屏旋转90度拼接，整合大画面分屏显示：多窗口程序（网页+股票+word+视频播放+PDF+flash等）

Related pictures

MORE>>　

OPN	MODEL	OUTPUT	COOLING
100-CG2266	AMD Embedded Radeon™ E6760 MCM Module	6 x DisplayPort / HDMI® / DVI	N/A
100-K00159	AMD Embedded Radeon™ E6760 MXM Type A Module	5 x DisplayPort / HDMI / DVI	N/A
100-K00156	AMD Embedded Radeon™ E6760 MXM Type A Module	DVI-I + DVI-D + HDMI	Fansink
100-K00157	AMD Embedded Radeon™ E6760 MXM Type A Module	DVI-I + DVI-D + HDMI	Heatsink
100-K00172	AMD Embedded Radeon™ E6760 MXM Type A Module	DVI-I + DVI-D + HDMI	N/A
100-K00170	AMD Embedded Radeon™ E6760 MXM Type A Module	6 x DisplayPort / HDMI / DVI	Fansink
100-K00171	AMD Embedded Radeon™ E6760 MXM Type A Module	6 x DisplayPort / HDMI / DVI	Heatsink
100-438019	AMD Embedded Radeon™ E6760 PCIe Board	2 x DVI and 1x mini DisplayPort	Fansink
100-438042	AMD Embedded Radeon™ E6760 PCIe Board	2 x DVI and 1x mini DisplayPort	Heatsink
100-438060	AMD Embedded Radeon™ E6760 PCIe Board	6 x mini DisplayPort	Fansink
100-438061	AMD Embedded Radeon™ E6760 PCIe Board	6 x mini DisplayPort	Heatsink
100-438037	AMD Embedded Radeon™ E6760 PCIe Board	6 x DisplayPort (with mDP to DP adapters)	Low-Power Heatsink
100-438059	AMD Embedded Radeon™ E6760 PCIe Board	6 x DisplayPort	Low-Power Heatsink
100-438038	AMD Embedded Radeon™ E6760 PCIe Board	6 x DisplayPort (with mDP to DP adapters)	Fansink
100-438039	AMD Embedded Radeon™ E6760 PCIe Board	6 x DisplayPort (with mDP to DP adapters)	Heatsink
100-438020	AMD Embedded Radeon™ E6760 PCIe Board	6 x DVI (with mDP to DVI adapters)	Fansink
100-438023	AMD Embedded Radeon™ E6760 PCIe Board	6 x DVI (with mDP to DVI adapters)	Heatsink
100-438081	AMD Embedded Radeon™ E6760 PCIe Board	4 x DisplayPort	Fansink
100-438084	AMD Embedded Radeon™ E6760 PCIe Board	4 x DisplayPort	Heatsink
100-438104	AMD Embedded Radeon™ E6760 PCIe Board	6 x DVI	Heatsink
100-438136	AMD Embedded Radeon™ E6760 PCIe Board	6 x DVI	Fansink
100-CG2763	AMD Embedded Radeon™ E6465MCM Module	4 x DisplayPort / HDMI / DVI	N/A
100-K00209	AMD Embedded Radeon™ E6465MXM Type A Module	4 x DisplayPort / HDMI / DVI	N/A
100-K00210	AMD Embedded Radeon™ E6465MXM Type A Module	4 x DisplayPort / HDMI / DVI	Heatsink
100-438182	AMD Embedded Radeon™ E6465PCIe Low Profile Board	4 x mini DisplayPort	Heatsink
100-438181	AMD Embedded Radeon™ E6465PCIe Low Profile Board	2 x DisplayPort	Heatsink
100-CG2261	AMD Embedded Radeon™ E6460 MCM Module	4 x DisplayPort / HDMI / DVI	N/A
100-K00169	AMD Embedded Radeon™ E6460 MXM Type A Module	DVI-I + DVI-D + HDMI	N/A
100-K00177	AMD Embedded Radeon™ E6460 MXM Type A Module	DVI-I + DVI-D + HDMI	Fansink
100-K00168	AMD Embedded Radeon™ E6460 MXM Type A Module	DVI-I + DVI-D + HDMI	Heatsink
100-K00174	AMD Embedded Radeon™ E6460 MXM Type A Module	4 x DisplayPort / HDMI / DVI	N/A
100-K00178	AMD Embedded Radeon™ E6460 MXM Type A Module	4 x DisplayPort / HDMI / DVI	Fansink
100-K00173	AMD Embedded Radeon™ E6460 MXM Type A Module	4 x DisplayPort / HDMI / DVI	Heatsink
100-438047	AMD Embedded Radeon™ E6460 PCIe Board	2 x DVI and 1x mini DisplayPort	Heatsink
100-438062	AMD Embedded Radeon™ E6460 PCIe Low Profile Board	4 x mini DisplayPort	Heatsink
100-438048	AMD Embedded Radeon™ E6460 PCIe Low Profile Board	4 x mini DisplayPort (with mDP to DP adapters)	Heatsink
100-438049	AMD Embedded Radeon™ E6460 PCIe Low Profile Board	4 x DVI (with mDP to DVI adapters)	Heatsink
