Intel显卡官方指导帖：
内置Intel集成显卡型号列表查询：http:[email protected]
（英文）
http://ark.intel.com/zh-cn/?_ga=1.261089293.1062888602.1481178514（中文）
内置Intel显卡驱动下载：http://www.intel.com/content/www/us/en/support/graphics-drivers.html?
intel集成显卡常见问题汇总：
http://www.intel.cn/content/www/cn/zh/embedded/software/emgd
/embedded-media-and-graphics-drivers-faq-general-questions.html
Intel主流CPU集成显卡型号说明：Intel的集成显卡分为三个系列，一个是HD Graphics系列，一个是Iris Graphics（锐炬）系列，最后是Iris Pro Graphics（锐炬Pro）系列，性能依次递增
Iris锐炬/锐炬Pro的出现
与Intel HD Graphics一样，锐炬及锐炬Pro同样是Intel集成显示核心的系列，它们的首次出现就是在Haswell处理器上。首先让我们来看看在Haswell处理器中，核心显卡的型号和规格：
◆HD Graphics（狭义）是Haswell最低端的集成显示核心，拥有10个运行单元，代号为GT1。GT1一般出现在Intel奔腾/赛扬处理器当中，性能较差，主要定位是满足日常基本的图形输出功能。
◆HD Graphics 4200/4400/4600代号为GT2，性能较GT1有了不小幅度的提高。它拥有20个运行单元，可以胜任一些负载不重的简单游戏（P4600/P4700为至强处理器内置，在此不做讨论）。
◆HD Graphics 5000及锐炬5100（Iris Graphics 5100）的核心代号为GT3，拥有40个运行单元，性能明显强于GT2。
◆锐炬Pro5200（Iris Graphics Pro 5200）核心代号为GT3e，运行单元与GT3一样同为40个。但它内嵌了eDRAM动态存储器，既可以当做集成显示核心的显存，又可以当做CPU的四级缓存（L4）。
|
CPU Graphic |
Maximum Display Resolution |
Display Support |
|
5th generation Intel® Core™ processor family (Intel® Iris™ graphics 6100, , Intel® HD graphics 5500 / 5600) Intel® Iris™ Pro graphics 6200 (Mid-2015) |
DisplayPort* 1.2 / eDP*
U-Processors: 3840 x 2160 @ 60 Hz
H-Processors: 4096 x 2304 @ 60 Hz
HDMI*: 4096 x 2304, 3840 x 2160 @ 24 Hz / 24bpp
DVI: 1920 x 1200 @ 60 Hz |
Yes (at most, 3 displays may be supported
at one time) |
|
Intel® Core™ M processor (Intel® HD graphics 5300) |
DisplayPort* 1.2 / eDP*
Y-Processors: 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 60 Hz capable (One display at 38 x 21 @ 60 Hz, 2nd display capped to 25 x 16, no 3rd display, additional cooling required)
HDMI*: 4096 x 2304, 3840 x 2160 @ 24 Hz / 24bpp
DVI: 1920 x 1200 @ 60 Hz |
3 (at most, 3 displays may be supported
at one time) |
|
4th generation Intel® Core™ processor family
(Intel® Iris™ Pro graphics 5200 / Intel® Iris™ graphics 5100, Intel® HD graphics 5000 / 4600 / 4400 / 4200) |
DisplayPort* 1.2 / eDP*
H-Processors: 3840 x 2160 @ 60 Hz (Ultra-HD)
U-Processors: 3200 x 2000 @ 60 Hz, 3840 x 2160 @ 30 Hz
Y-Processors: 2560 x 1600 @ 60 Hz
HDMI*: 4096 x 2304, 3840 x 2160 @ 24 Hz / 24bpp
DVI: 1920 x 1200 @ 60 Hz |
3 (at most, 3 displays may be supported
at one time) |
|
Product Name |
Intel® Core™ i7-6700K Processor (8M Cache, up to 4.20 GHz) |
Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz) |
Intel® Core™ i7-6700T Processor (8M Cache, up to 3.60 GHz) |
Intel® Core™ i7-6700HQ Processor (6M Cache, up to 3.50 GHz) |
Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz) |
|
Code Name |
Skylake |
Skylake |
Skylake |
Skylake |
Skylake |
|
-
Essentials |
|
Processor Number |
i7-6700K |
i7-6700 |
i7-6700T |
i7-6700HQ |
i7-6700TE |
|
Launch Date |
Q3'15 |
Q3'15 |
Q3'15 |
Q3'15 |
Q4'15 |
|
Lithography |
14 nm |
14 nm |
14 nm |
14 nm |
14 nm |
|
Recommended Customer Price |
$339.00 - $350.00 |
$303.00 - $312.00 |
$303.00 |
$378.00 |
$303.00 |
|
Included Items |
|
Thermal Solution - E97379 |
Thermal Solution - E98290 |
|
|
|
-
Performance |
|
# of Cores |
4 |
4 |
4 |
4 |
4 |
|
# of Threads |
8 |
8 |
8 |
8 |
8 |
|
Processor Base Frequency |
4.00 GHz |
3.40 GHz |
2.80 GHz |
2.60 GHz |
2.40 GHz |
|
Max Turbo Frequency |
4.20 GHz |
4.00 GHz |
3.60 GHz |
3.50 GHz |
3.40 GHz |
|
Cache |
8 MB SmartCache |
8 MB SmartCache |
8 MB SmartCache |
, , 6 MB , , S, martCache , |
8 MB SmartCache |
|
TDP |
91 W |
65 W |
35 W |
45 W |
35 W |
|
Datasheet |
Link |
Link |
Link |
Link |
Link |
|
Product Brief |
Link |
|
|
Link |
|
|
-
Memory Specifications |
|
Max Memory Size (dependent on memory type) |
64 GB |
64 GB |
64 GB |
64 GB |
64 GB |
|
Memory Types |
DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V |
DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V |
DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V |
DDR4-2133, LPDDR3-1866, DDR3L-1600 |
DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V |
|
Max # of Memory Channels |
2 |
2 |
2 |
2 |
2 |
|
ECC Memory Supported ‡ |
No |
No |
No |
No |
No |
|
-
Graphics Specifications |
|
Processor Graphics ‡ |
Intel® HD Graphics 530 |
Intel® HD Graphics 530 |
Intel® HD Graphics 530 |
Intel® HD Graphics 530 |
Intel® HD Graphics 530 |
|
Graphics Base Frequency |
350.00 MHz |
350.00 MHz |
350.00 MHz |
350.00 MHz |
350.00 MHz |
|
Graphics Max Dynamic Frequency |
1.15 GHz |
1.15 GHz |
1.10 GHz |
1.05 GHz |
1.00 GHz |
|
Graphics Video Max Memory |
64 GB |
64 GB |
64 GB |
64 GB |
64 GB |
|
Graphics Output |
eDP/DP/HDMI/DVI |
eDP/DP/HDMI/DVI |
eDP/DP/HDMI/DVI |
eDP/DP/HDMI/DVI |
eDP/DP/HDMI/DVI |
|
4K Support |
Yes, at 60Hz |
Yes, at 60Hz |
Yes, at 60Hz |
Yes, a, t 60, Hz,, <, o:p,>
Yes, at 60Hz |
|
Max Resolution (Intel® WiDi)‡ |
1080p |
1080p |
1080p |
1080p |
1080p |
|
Max Resolution (HDMI 1.4)‡ |
[email protected]
|
[email protected]
|
[email protected]
|
[email protected]
|
[email protected]
|
|
Max Resolution (DP)‡ |
[email protected]
|
[email protected]
|
[email protected]
|
[email protected]
|
[email protected]
|
|
Max Resolution (eDP - Integrated Flat Panel)‡ |
[email protected]
|
[email protected]
|
[email protected]
|
[email protected]
|
[email protected]
|
|
Max Resolution (VGA)‡ |
N/A |
N/A |
N/A |
N/A |
N/A |
|
DirectX* Support |
12 |
12 |
12 |
12 |
12 |
|
OpenGL* Support |
4.4 |
4.4 |
4.4 |
4.4 |
4.4 |

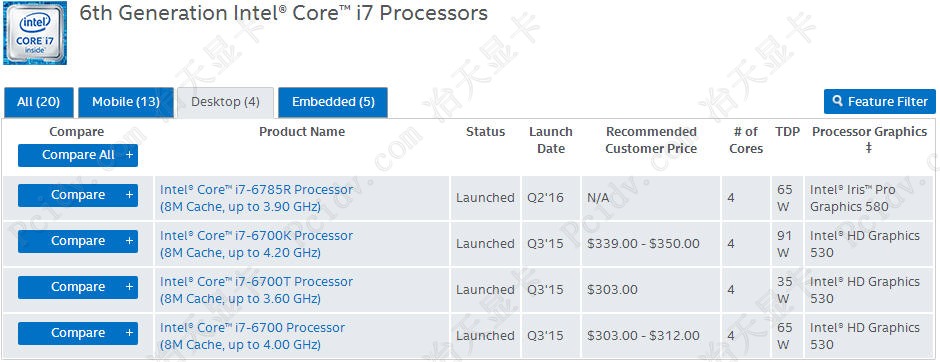

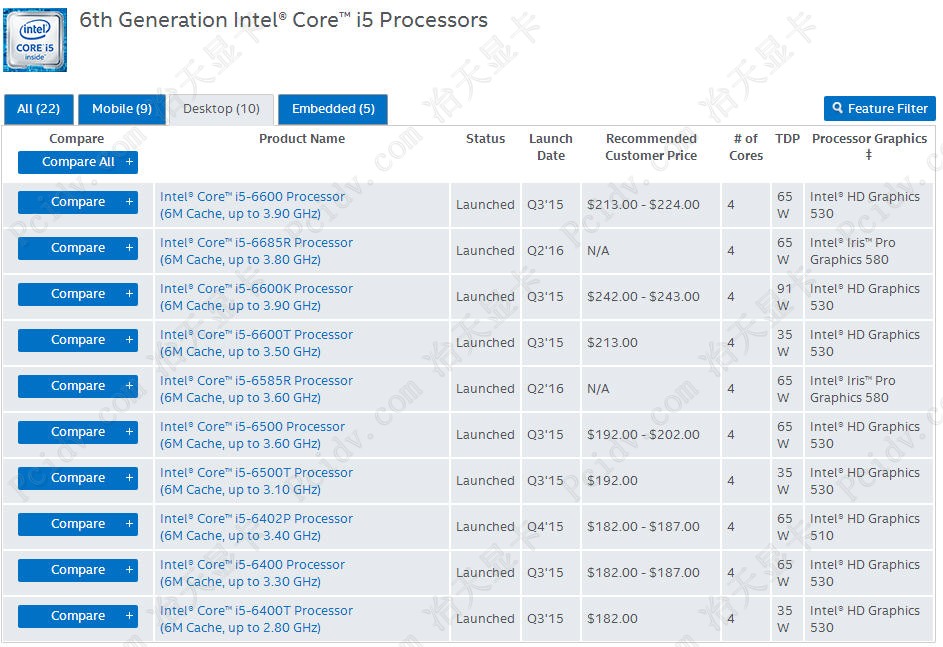

Intel第6代CPU集成显卡参考

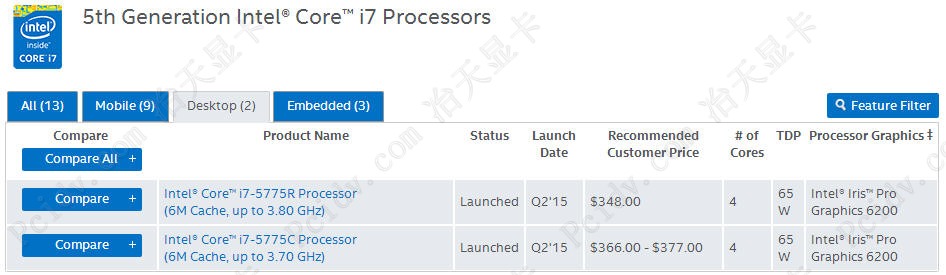

Intel第5代CPU集成显卡

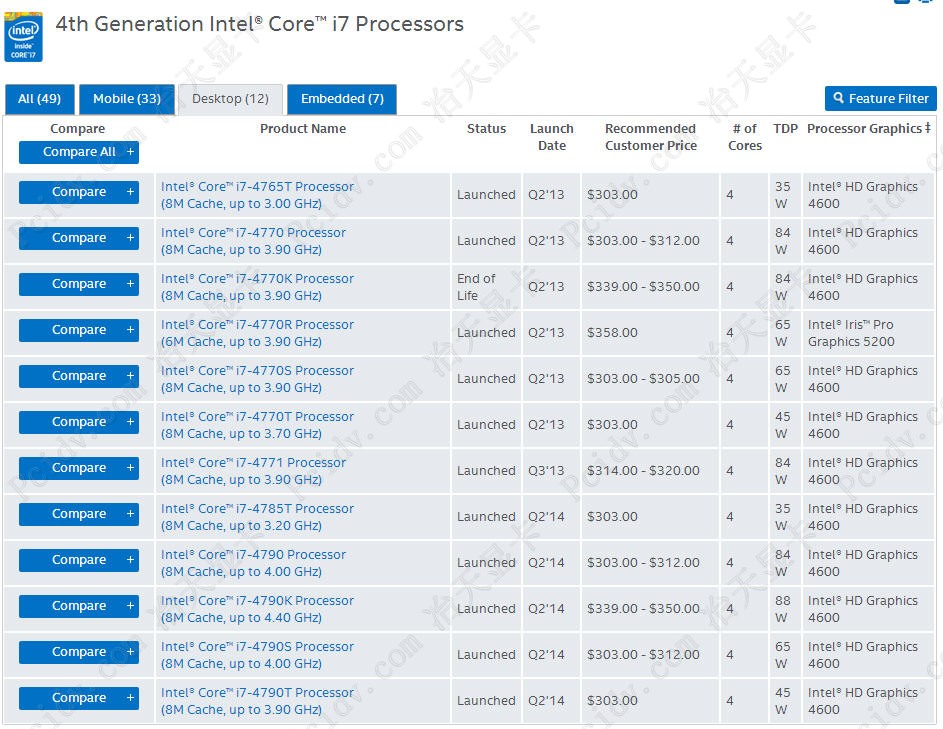

Intel第4代CPU集成显卡一览

ASUS Z9PE-D8 WS 主板的PCI-E 1-4号接口，由CPU1负责，提供 4 X PCI-E 3.0 X16插槽（X16,X16或者 X8,X8,X8,X8），后PCI-E 5-7号接口，有CPU2负责，提供 3 X PCI-E 3.0 X16插槽（X16,X16或者 X8,X8,X8）。实现了真正的4路X16的速度。使得主板一共出现了4路完整X16或7路X8，如果有7路SLI，那么这个主板可以实现X8速度下的7路。
|
|
|
|
|
